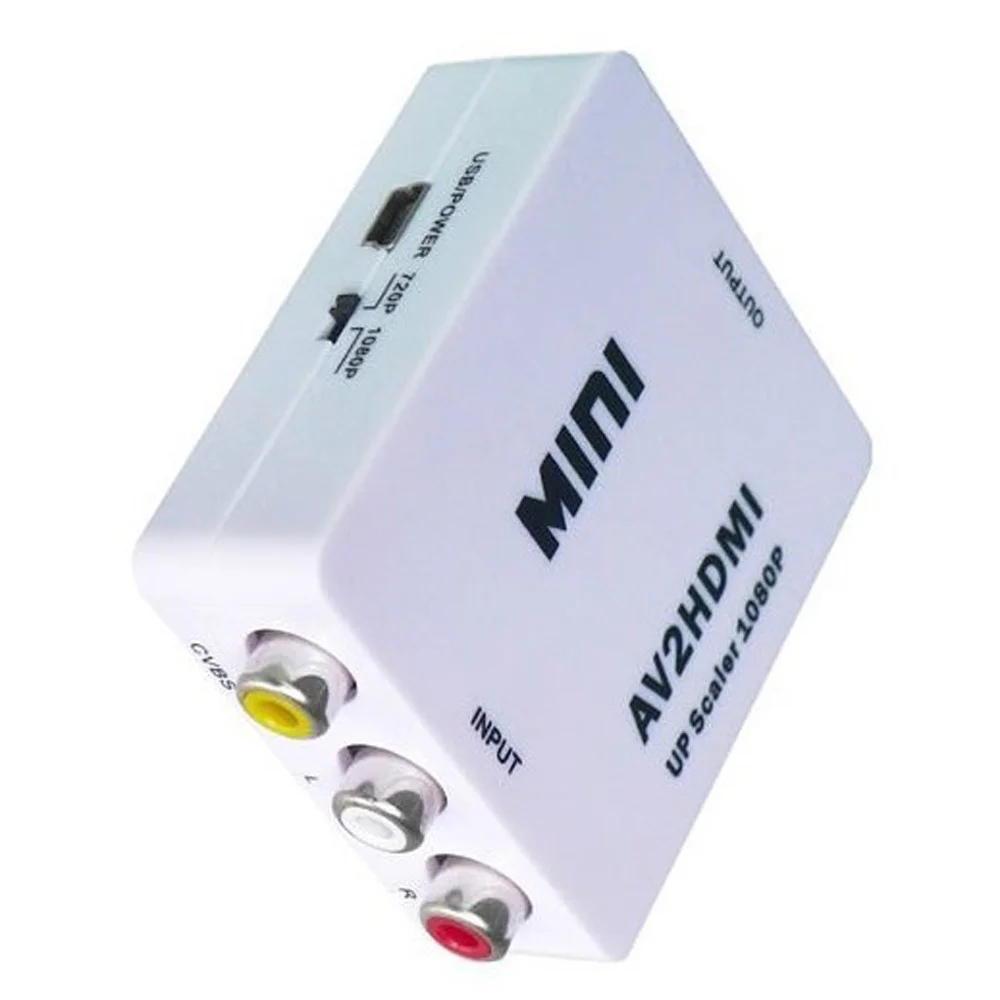

The Mini AV To HDMI converter is a universal converter for analog composite input to HMDI 1080p(60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch, auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.
CHARACTERISTICS:
1. HDMI 1080P, pure digital transmission, nonde structive.
2. Plug and Play, No need to install drivers.
3. Low power, No need Power Supply.
4. Output the audio synchronization with video.
5. Supports full format. (PAL, NTSC, SECAM, etc.)
INSTRUCTIONS:
1. AV+L/R Input: Audio and video input port, AV (yellow), L (white), R (red).
2. HDMI Output: HDMI 1080P Output.
3. The Button of Output Format: A. Short press (less than 0.2 seconds) : select 1080P HDMI, DVI, 1080P, 720P HDMI, DVI, 720P; B. Long press (around 0.5 seconds): select full screen mode (with display) or 5% display mode (with 5% scanning TV set).
4. DC(5V/1A): The power input socket.
![]()
